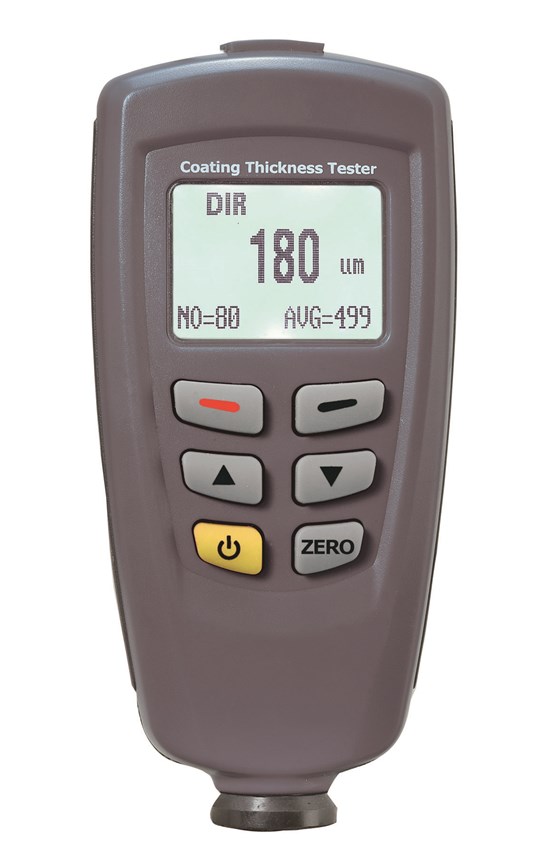

COATING THICKNESS TESTER Ref : HU14002

Dual technology features an automatic selection of magnetic induction or Eddy current measurement techniques
Ideal for :
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
Two measuring modes: CONTINUE and SINGLE mode
Two working modes: DIRECT and GROUP mode
Statistic display: AVG, MAX, MIN, NO., S.DEV
One point calibrating, two points calibrating and basic calibrating easily
Memory for 400 readings (80 DIRECT and 320 GROUP readings)
Delete single readings and all group readings easily
High alarm and Low alarm for all working mode
Low battery, error indication
USB interface for PC software (windows 98/2000/xp/vista)
Sensor probe F N
Measuring range 0~1250um 0~1250um
Guaranteed tolerance (of reading)
(+/- 3%+1)um (+/- 3%+1.5)um
Low range Precision 0.1um
Minimum curvature radius 1.5mm
Diameter of Minimum area 7mm
Basic critical thickness 0.5mm – 0.3mm
Kit includes two “AAA” batteries, USB cable, CD, calibration iron, calibration aluminum, precision standard, carrying case
